Quality Oil Skimmers since 1981

Stouder Engineering is a family-owned and operated business.
We manufacture the Carol Company tramp oil skimmers,
as well as provide replacement parts.

Proudly made in America.

Tramp Oil Belt Skimmer

Simple, economical skimmer for removing free-floating tramp oils in limited access areas.

Reduces chemical usage, prolongs tool life and minimizes hazardous waste disposal costs. Learn More

Tramp Oil Disk Skimmers

Highly effective, yet economical skimmer for removing tramp oils from
rinse tanks, parts washers, floor sumps and machines tools.

Reduces chemical usage, prolongs tool life and minimizes hazardous waste disposal costs. Learn More

Products

Belt Skimmers
  • 8" to 24" belts
  • Continuous duty motor standard
  • Handle for portability
  • Fits in limited access areas
  • Learn more
Disk Skimmer
  • 8" to 24" discs
  • Continuous duty motor standard
  • Acrylic disc standard.
  • Aluminum and phenolic disc options
  • Learn more
Replacement Parts


Belt Skimmers

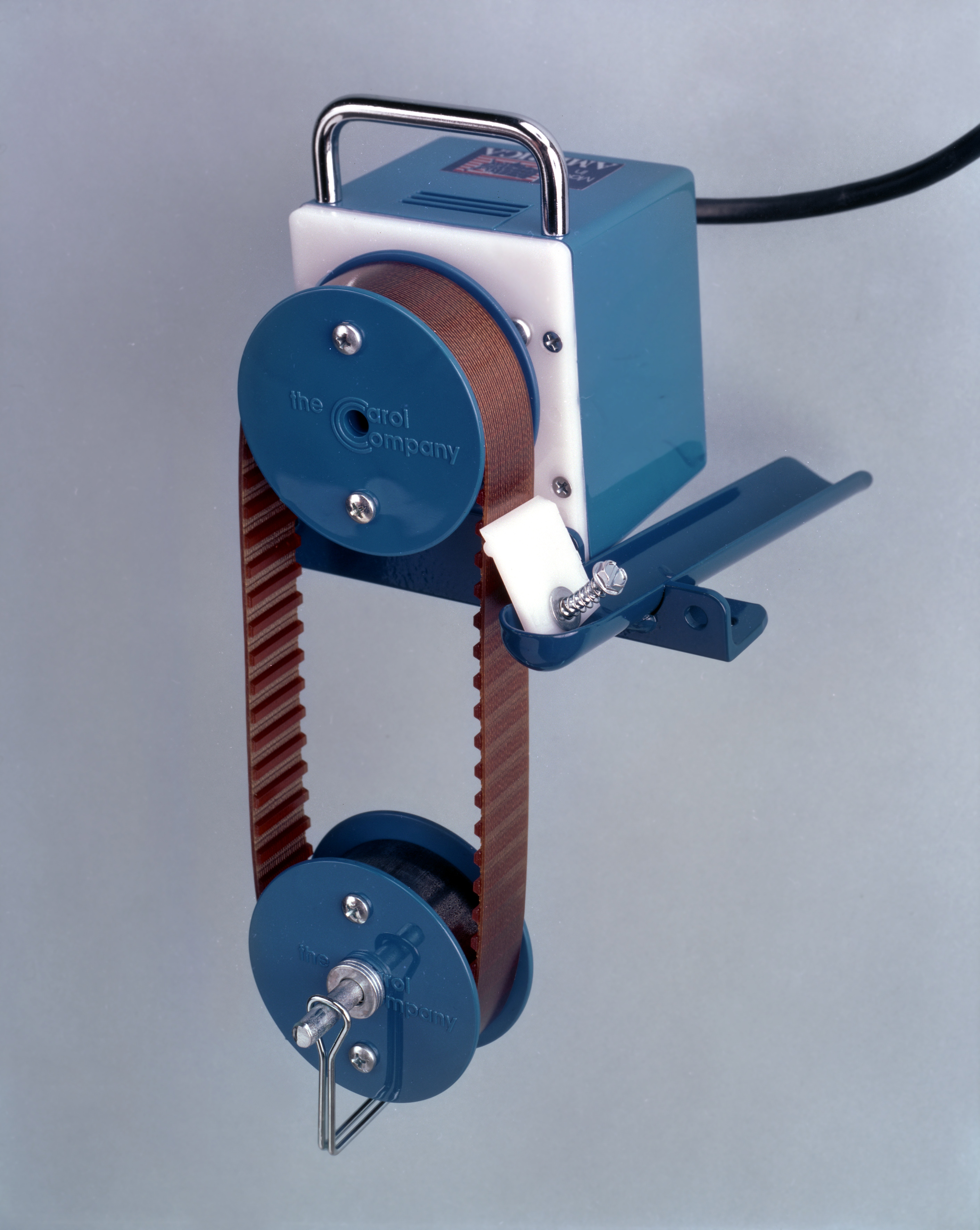

Picture of belt skimmer

Click for large view


Standard with continuous motor duty packages and polyurethane belt.


Removes about 1 quarter per hour.


Belt distance is measured from bottom of frame to bottom of Idler weight.



Features:

  • Powder-coated, steel frame construction
  • Requires only a 3" x 2" opening
  • Spring-loaded wiper blades
  • Handle for portability
  • Mounting holes in frame
  • Four different belt lengths
  • Simple, plug-in operation

Specifications:

  • Dimensions: 8.75" L x 7.75" W x 5.75 H
  • Weight: 8 pounds
  • Motor: Continuous duty, 110V
  • Wiper Blade: Nylon
  • Idler Roller: Steel and Nylon
  • Driver Pulley: Nylon
  • Belt Material: Polyurethane

Warranty: 90 days parts. Ground fault interrupter device and proper grounding required. Timer recommended for unattended operation.



FOB: Hagerman, ID

Terms: Net 30 w/approved credit

Continuous Duty Motor Package

SKU Belt Size Retail Price
CBS 100 w/CMP-10 8 inches $300.00
CBS 200 w/CMP-10 12 inches $315.00
CBS 300 w/CMP-10 18 inches $325.00
CBS 400 w/CMP-10 24 inches $335.00


Belt Skimmer Replacement Parts

We believe in supporting our skimmers for life.


Below you can find replacement parts for all our skimmer models. If you can't find what you need, please call us at +1 (800) 663-4852 or (208) 837-4663.


FOB: Hagerman, ID

Terms: Net 30 w/approved credit


Bare Motor

SKU Description Retail Price
CM10 10 RPM Continous Duty Motor 1/4" dia. shaft $132.00

Motor Packages

*Includes motor, box, face plate, belt pulley, handle & mounting braket

SKU Description Retail Price
CMP10 10 RPM Continous Duty Motor Package, 1/4" dia. shaft $215.00

Replacement Belts

SKU Description Retail Price
RB08P 8" Replacement polyurethane belt $75.00
RB12P 12" Replacement polyurethane belt $85.00
RB18P 18" Replacement polyurethane belt $95.50
RB24P 24" Replacement polyurethane belt $105.00

Spare Parts

SKU Description Retail Price
B301 Wiper blade, spring, screw and washer $8.00
B302 Belt pully assembly (for CBS-110 thru CBS-400) $30.00
B303 Idler weight assembly (for CBS-110 thru CBS-400) $25.00


Disc Skimmers

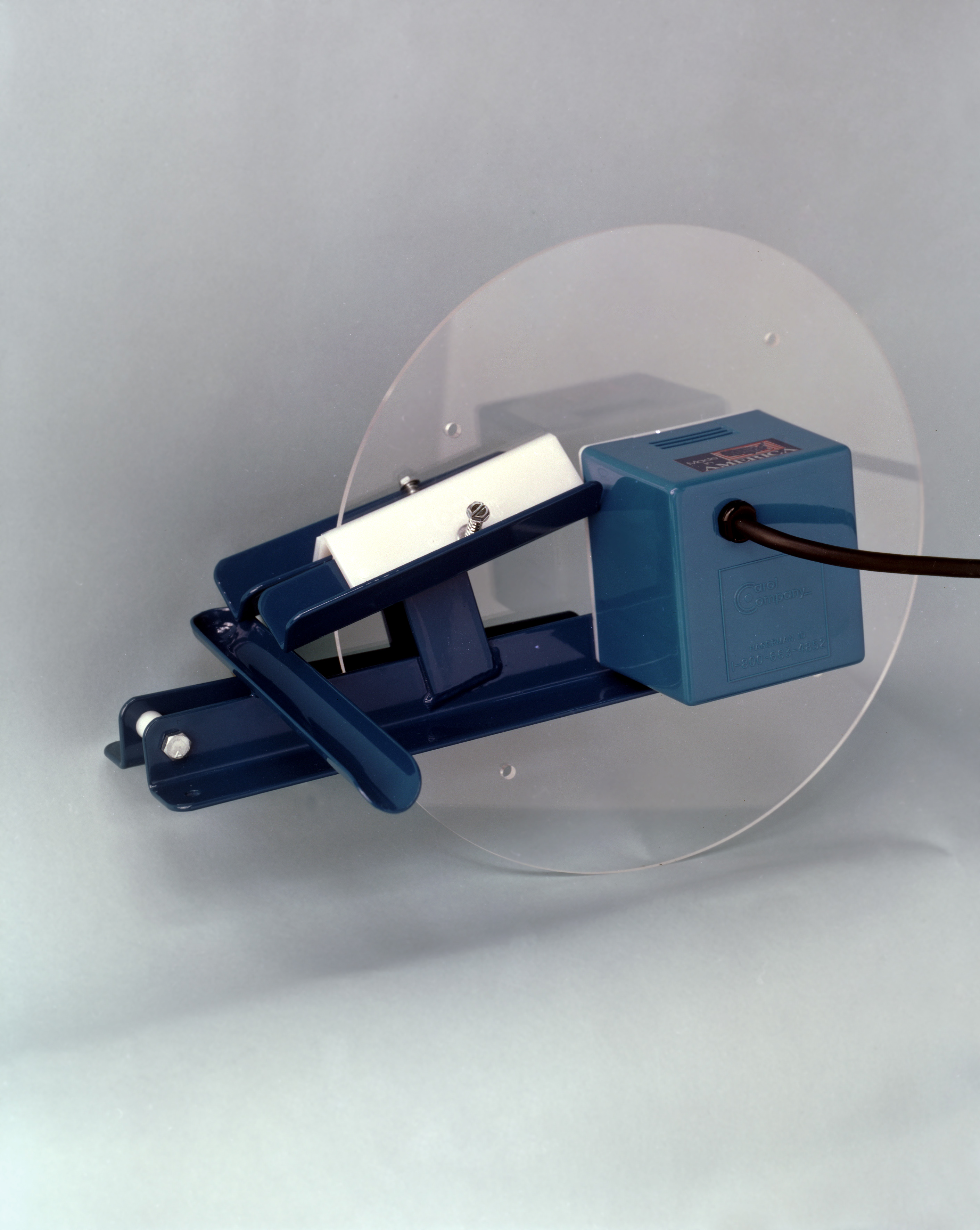

Picture of disc skimmer

Click for large view


All units standard with continuous duty motor and acrylic disc.


Optional discs include aluminum (high temperatures) and phenolic discs (high temperatures and caustic liquids).



Features:

  • Powder-coated, steel frame construction
  • Spring-loaded wiper blades
  • Mounting holes in frame
  • Discs available in acrylic (default), aluminum and phenolic.
  • Simple, plug-in operation

Specifications:

  • Motor: Continuous duty, 110V
  • Wiper Blade: Nylon

Warranty: 90 days parts. Ground fault interrupter device and proper grounding required. Timer recommended for unattended operation.


FOB: Hagerman, ID

Terms: Net 30 w/approved credit

Continuous Duty Motor Package with Acrylic Disc (Standard)

SKU Disc Size Disc RPM Length Height Width Weight Retail Price
CC-08 w/CMP-6 8 inches 6 RPM 10 in 8 in 7.75 in 6 lbs $295.00
CC-12 w/CMP-6 12 inches 6 RPM 16 in 12 in 8 in 8 lbs $295.00
CC-18 w/CMP-6 18 inches 6 RPM 22 in 18 in 8 in 10 lbs $330.00
CC-24 w/CMP-2 24 inches 2 RPM 28 in 24 in 8 in 12 lbs $390.00

Continuous Duty Motor Package with Aluminum Disc

SKU Disc Size Disc RPM Retail Price
CC-12AL w/CMP-6 12 inches 6 RPM $310.00
CC-18AL w/CMP-6 18 inches 6 RPM $385.00
CC-24AL w/CMP-2 24 inches 2 RPM $465.00

* dimensions and weight are same as standard units.

Continuous Duty Motor Package with Phenolic Disc

SKU Disc Size Disc RPM Retail Price
CC-12PH w/CMP-6 12 inches 6 RPM $340.00
CC-18PH w/CMP-6 18 inches 6 RPM $420.00
CC-24PH w/CMP-2 24 inches 2 RPM $500.00

* dimensions and weight are same as standard units.



Disc Skimmer Replacement Parts

We believe in supporting our skimmers for life.


Below you can find replacement parts for all our skimmer models. If you can't find what you need, please call us at +1 (800) 663-4852 or (208) 837-4663.


FOB: Hagerman, ID

Terms: Net 30 w/approved credit


Bare Motor

SKU Description Retail Price
CM2 2 RPM Continous Duty Motor (for CC-24) 1/4" dia. shaft $120.00
CM6 6 RPM Continous Duty Motor (for CC-08, CC-12, CC-18) 1/4" dia. shaft $110.00

Motor Packages

*Includes motor, box, face plate, cord & hub

SKU Description Retail Price
CMP2 2 RPM Continous Duty Motor Package (for CC-24) 1/4" dia. shaft $180.00
CMP6 6 RPM Continous Duty MOtor Package (for CC-08, CC-12, CC-18) 1/4" dia. shaft $170.00

Replacement Discs

SKU Description Retail Price
W8AC 8" Acrylic $20.00
W12AC 12" Acrylic $20.00
W18AC 18" Acrylic $35.00
W24AC 24" Acrylic $50.00

Use aluminum for high temperature situations (>120 degrees fahrenheit).
W12AL 12" Aluminum $35.00
W18AL 18" Aluminum $90.00
W24AC 24" Aluminum $125.00

Use phenolic for high temperature situations (>120 degrees fahrenheit) and caustic liquids.
W12PH 12" Phenolic $50.00
W18PH 18" Phenolic $125.00
W24PH 24" Phenolic $160.00

Spare Parts

SKU Description Retail Price
D201 Wiper blades, springs, screws and washers (2/sets, for CC-12, CC-18 & CC-24) $15.00
D201A Wiper blades, springs, screws and washers (2/sets, for CC-08) $17.00
D201-OS Wiper blades, springs, screws and washers (2/sets, for CC-12, CC-18 & CC-24), Old Style $15.00
D202 Motor hub assembly (1/4" for continuous, 5/16" for standard, Please specify) $12.50

Our Values

A Life Time of Performance

Quality

We design our skimmers so they last a lifetime. Steel frames are powder-coated. Engines are of highest quality. Every skimmer comes with a 90 day parts warranty.

Support

If you have a problem simply call. We are happy to help you get it resolved.

Replacements

Replacement parts can be shipped same or next day.

Customer Service

We value your loyalty. As a small family owned company you get direct access to the owners and we'll do our best to ensure we take great care of you.

Frequentyly Asked Questions

What's the difference between disc skimmers and belt skimmers?

A disc skimmer mounts to the top of the tank and runs a large diameter disc into the liquid's surface. A belt skimmer mounts to the tank and runs a belt down into the liquid surface. Both draw oil and collect it in a separate container. They each have advantages. A disc skimmer is cheaper and removes more oil per hour, but can't go as deep as a belt skimmer. A disc skimmer requires more room to operate, but works faster than a belt skimmer. Belt skimmers fit into limited access areas and can reach deep into water or tanks.

How is the skimmer measured?

A belt skimmer is measured by the amount of reach it has from bottom of the motor to the bottom of the pulley. Disc skimmers are measured by the diameter of the disc and the reach of the disc into the liquid.

What sizes are available for discs skimmers?

Carol Company disc skimmers are available in ranges of sizes from 8 inch to 24 inch. The difference is the depth each disc goes into the liquid.

8-inch goes in about 1 inch.
12-inch goes in about 4 inches.
18-inch go in about 5 inches.
24-inch goes in about 6 to 8 inches.

What if my belt is no longer picking up oil?

If your skimmer uses a polyurethane belt and is no longer working properly, it may need to be cleaned with alcohol.

Will a skimmer remove all the oil?

If the tank has no baffles, skimmers will be able to remove nearly all of the oil. When baffels are present, skimmers should be moved, or multiple placed, into different sections for more thorough oil removal.

Five advantages of a belt skimmers

It operates in high temperatures.
It cleans easily.
It handles fluctuating liquid levels.
It requires little operating space.
It reduces chemical usage and minimizes hazardous waste disposal costs.
